Copper Cone Crusher

Copper ore cone crusher features the high crushing ratio,high efficiency,high handing capacity, low operation cost, easy adjustment and economical operation. The quality of material used for components and reasonable design of construction contribute to longer running performance and even granulaarity of the the crushed product in addition to reducing the circulation load; and furthermore by introducing the hydraulic cleaning chamber system into the crushers of middle and large size. Copper cone crusher is divided into two types: the standard type and the short head type. Consequentially the standard type is generally used for medium and coarse material,and the short head type for medium and fine material.

Working Principle Description - Copper Benefication Cone Crusher

During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.

Application Area

Copper ore one crusher is widely applied in metallurgical, construction, road building, chemical and phosphatic industry.
Ore mineral cone crusher is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc. Type of the crushing cavity is decided by the application of the ores. Standard type is for PYZ (secondary crush); middle type is for PYD (tertiary crush); short-head type is for primary and secondary crush.

Copper Cs Cone Crusher Specification

Type	Dia. of cone - mm (inch)	Cavity	Disch- arge setting mm	Capacity	Coun- ter shaft	Power	Weight	Overall dimension (mm)
CSB75	900 (3')	fine	9-22	45-91	580 r/min	75 kw	15 ton	2821x 1880 x2164
		coarse	13-38	59-163
CSB110	1200 (4')	fine	9-31	63-188	485 r/min	110 kw	20 ton	2821x 1974 x2651
		medium	13-38	100-200
		coarse	19-51	141-308
CSB160	1295 (4 1/4')	fine	13-31	109-181	485 r/min	160 kw	27 ton	2800x 2342 x2668
		medium	16-38	132-253
		coarse	19-51	172-349
CSB240	1650 (5 1/2')	fine	16-38	181-327	485 r/min	240 kw	55 ton	3911x 2870 x3771
		medium	22-51	258-417
		coarse	25-64	299-635
CSB315	2134 (7')	fine	19-38	381-726	435 r/min	315 kw	110 ton	4613x 3251 x4732
		medium	25-51	608-998
		coarse	31-64	789-1270
CSD75	914 (3')	fine	3-13	27-90	580	75	15	2821x 1880 x2410
		coarse	3-16	27-100
CSD110	1218 (4')	fine	5-16	50-132	485	110	20	2560x 1942 x2928
		medium	10-16	90-145
		coarse	13-19	141-181
CSD160	1295 (4 1/4')	fine	3-16	36-163	485	160	27	2800x 2342 x2668
		medium	6-16	82-163
		coarse	10-25	109-227
CSD240	1676 (5 1/2')	fine	5-13	90-209	485	240	55	3917x 2870 x3771
		medium	6-19	136-281
		coarse	10-25	190-336
CSD315	2134 (7')	fine	5-16	190-408	435	315	110	4130x 3251 x4454
		medium	10-19	354-508
		coarse	13-25	454-599

Copper Spring Cone Crusher Specification

Model		weight (T)	power	Conical Crushing Head Bottom Diameter	max feeding size	adjustment range of discharge opening	capacity (t/h)
PYB	600	5	30	Φ600 mm	75	12-25	40
PYZ		5.3		Φ600 mm	35	3-13	5-23
PYB	900	11.2	55	Φ900 mm	115	15-50	50-90
PYZ		11.2		Φ900 mm	60	5-20	20-65
PYD		11.3		Φ900 mm	50	3-13	15-50
PYB	1200	24.7	110	Φ1200 mm	145	20-50	110- 168
PYZ		25		Φ1200 mm	100	8-25	42-135
PYD		25.3		Φ1200 mm	50	3-15	18-105
PYB	1750	50.3	160	Φ1750 mm	215	25-50	280- 480
PYZ		50.3		Φ1750 mm	185	10-30	115- 320
PYD		50.2		Φ1750 mm	85	5-13	75-230
PYB	2200	80	260-280	Φ2200 mm	300	30-60	490- 750
PYZ		80		Φ2200 mm	230	10-30	200- 580
PYD		81.4		Φ2200 mm	100	5-15	120- 340

Copper Mobile Cone Crusher Specification

Parameter & Model	Vibrating screen	Cone crusher	Belt conveyor (down)	Belt conveyor (up)	Capacity (t/h)	Power  (kw)
Y3S1548Y55	3YA1548	PYB900	B500X7M		50-90	75
Y3S1848Y90	3YA1848	HCS-90	B650X7M		65-130	99-134
Y3S1860Y160	3YA1860	CS-160	B650X8M		110-455	212.5-220.5
Y3S2160Y220	3YA2160	HPC-220	B800X8M		140-330	257.5-264.5

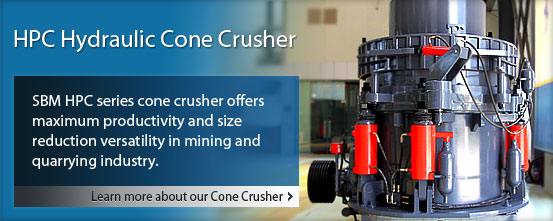

Copper High Pressure Hydraulic Cone Crusher Specification

Model	Cavity (coarse/fine)	Discharge setting min.	Feed opening	Capacity (t/h)	Power (kw)	Weight (t)	movable cone diameter
HPC-160	C	13 mm	150 mm	120-240	160	13	950 mm
	F	6 mm	76 mm	55-180
HPC-220	C	13 mm	225 mm	150-430	220	18	1160 mm
	F	6 mm	86 mm	90-260
HPC-315	C	13 mm	290 mm	190-610	315	26	1400 mm
	F	6 mm	100 mm	108-320
HPC-400	C	13 mm	320 mm	230-700	400	33	1500 mm
	F	6 mm	110 mm	145-430

Note: This specification is just reference, any changes are subject to the products
