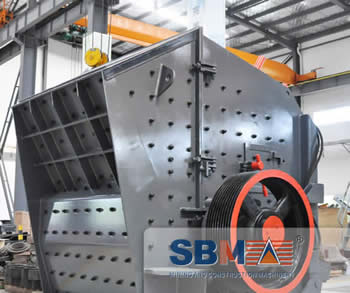

Copper Impact Crusher

Copper Ore Impact Crusher began as a pioneer brand of Shibang Machinery Company in the field of Crushing Equipments. PFW series copper mineral impact crusher improves the adjusting device, the operation becomes more convenient. The tri – cavity makes excellent capability in the fine crushing and super fine crushing line. The bi-cavity can simplify the process flow in the coarse crushing line. Copper Jaw Crusher Features and Benefits: 1. Bearing adopts the integrated cast-steel structure, which ensures the perfect match with crusher frame. Meanwhile, it greatly increases the radial intensity of bearing seat. 2. Unique fixing device of blow bar brings higher reliability. 3. Reformative adjusting device decrease the time of machine stop and overhaul. 4. Self-own open-top device can quickly finish the replacement of wearing parts. 5. Larger bearing specification and higher carrying capacity. 6. Rotor analysis ensures stableness and reliability.

Working Principle Description
- Copper Mineral Dressing Impact Crusher

This copper impact crushing machine uses motor as its power. It is simple structure, Non-key Connection, high chromium Flat Hammer, special impact plate, simplified crushing process, and high-efficiency and energy conservation, Cubic Shape for the final products. The discharge opening can be adjusted. It is widely used in water and electricity, expressway, sand and stone, crushing fields.

Application Area

This series of copper impact crusher is widely used in copper, iron ore, zinc, gold and other metal or no-metal mineral dressing industry. It can reach the crushing ratio of 4-6 and the shape of final product is even. They are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slags, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, suitable for primary crush. Copper jaw crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc. Some commen process meterials : * Black trap, Basalt; * Granite, River gravel; * Bauxite, Hard Rock; * Lime Stone,Coal; * Iron ore, Maganize ore.

Copper Impact Crusher Specification

Type	Spec.	Feeder Opening(mm)	Feeding Size (mm)	Crushing Capacity (t/h)	Motor Power (KW)	Weight (t)
PF-1010	Φ1000×1050	400×1080	350	50-80	55-75	12.6
PF-1210	Φ1250×1050	400×1080	350	70-120	110-132	14
PF-1214	Φ1250×1400	400×1430	350	80-160	132-160	18.6
PF-1315	Φ1320×1500	860×1520	350	160-260	180-260	24.2
PFV-1010	Φ1000x1050	400x1080	350	60-100	55-75	13.2
PFV-1210	Φ1250x1050	400x1080	350	70-150	110-132	15.2
PFV-1214	Φ1250x1400	400x1430	350	100-200	132-160	18.6
PFV-1315	Φ1320x1500	860x1520	350	150-300	180-220	24.5

Note: This specification is just reference, any changes are subject to the products

PFW Copper Ore Impact Crusher Specification

Type	Spec.	Feed Opening Size (mm)	Max. Feed Size (mm)	Crushing Capacity (t/h)	Weight (t)	Dimension (mm)
PFW1210Ⅲ	Ф1150 X960	570X990	250	70-120	15.0	2550X1870 X2100
PFW1214Ⅲ	Ф1150 X1400	570X1430	250	90-170	19.0	2550X2310 X2100
PFW1315Ⅲ	Ф1300 X1500	625X1530	300	180-270	25.0	2960X2570 X2380
PFW1318Ⅲ	Ф1300 X1800	625X1830	300	220-300	30.0	2960X2870 X2380
PFW1210 II	Ф115 X960	1100X1030	400	90-160	17.0	2400X1870 X2550
PFW1214 II	Ф1150 X1400	1100X1430	500	130-200	22.0	2400X2310 X2550
PFW1315 II	Ф1300 X1500	1200X1530	600	180-320	29.0	2700X2570 X2800
PFW1318 II	Ф1300 X1800	1200X1830	700	240-400	34.0	2700X2870 X2800

Note: This specification is just reference, any changes are subject to the products
