Copper Ore Jaw Crusher

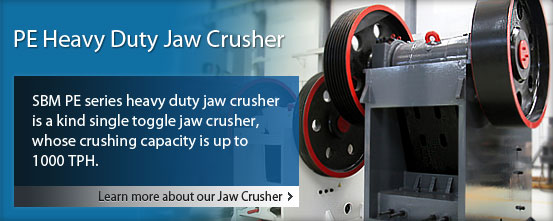

Copper Ore Jaw Crusher began as a pioneer brand of Shibang Machinery Company in the field of Crushing Equipments. The quality copper jaw crusher include Jaw Crusher, Portable Jaw Crushing Unit, Track Mobile Jaw Crusher and PEW Jaw Crusher. Mineral Jaw Crusher are designed for consistent in performance in all type of heavy-duty applications. Jaw Crushers are configured for primary crushing of copper ore dressing process. The plants are designed for long life service with minimum maintenance for hard, tough, abrasive material and overload high capacity. All products are also well suited to high efficiency, large capacity size operation.
Copper Jaw Crusher Features and Benefits: 1) simple structure, easy maintenance, 2) stable performance, 3) Flexible capacity, 4) Over loading protection, 5) stable performance, 6) stable performance, 7) even final particles and high crushing ratio, 8) High efficiency and low operation cost, 9) Alternative ordinary and hydraulic types.

Working Principle Description - Copper Mineral Dressing Jaw Crusher

This copper jaw crushing machine uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening. We also provide cone crusher, impact crushing machine, mobile series, vertical shaft plant, various grinding mills and ancillary products like washing machine, belt conveyor and vibrating screen.

Application Area

This series of jaw crusher is widely used in copper, iron ore, zinc, gold and other metal or no-metal mineral dressing industry. It can reach the crushing ratio of 4-6 and the shape of final product is even. They are widely applied to crush high hardness, mid hardness and soft rocks and ores such as slags, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, suitable for primary crush. Copper jaw crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc. Some commen process meterials : * Black trap, Basalt; * Granite, River gravel; * Bauxite, Hard Rock; * Lime Stone,Coal; * Iron ore, Maganize ore.

Copper Jaw Crusher Specification

Model	Feed inlet size(mm)	Max inlet size(mm)	Capacity(t/h)	Electric power(kw)	Overall size LxWxH(mm)	Weight(t)
PE150×250	150×250	125	1-5	5.5	875×758×850	0.81
PE250×400	250×400	210	5-20	15	1450×1315×1296	2.8
PE400×600	400×600	340	25-65	30	1565×1732×1586	6.5
PE500×750	500×750	425	45-80	55	1892×2054×1853	10.1
PE600×900	600×900	500	70-150	55-75	2520×1840×2303	15.5
PE750×1060	750×1060	630	130-260	110	2620×2302×3110	28
PE900×1200	900×1200	750	220-500	110-132	3789×2826×3025	50
PE1000×1200	1000×1200	850	250-700	132	3889×2826×3025	57
PE1200x1500	1200×1500	1020	400-1000	160-220	4200×3750×3820	100.9

Note: This specification is just reference, any changes are subject to the products
