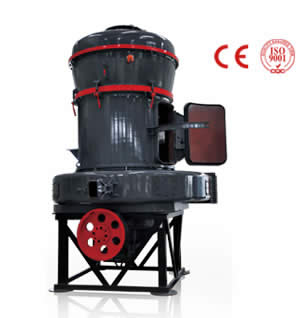

MTW Grinding Mill

Home > Grinding Mill > MTW Grinding Mill

See Larger Images

Brochure Download (1.6M PDF)

MTW Grinding Mill Introduction

MTW European Trapezium Grinding Mill is SBM’s newest grinding machine with top technical level in the world and many patented techniques. According to the experience and suggestions from 9518 customers, SBM has made great efforts to bring MTW European Trapezium Grinding Mill into the world.

Online Chat For Product Information And Price.

Recommendation Index :

SBM’s newest grinding machine with top technical

MTW Grinding Mill Features and Benefits :

1. The bevel gear transmits in a whole, which makes the structure more compact, installation and commission more convenient;

2. The internal oil pump can lubricate the bearings both in main shaft and bevel gear shaft, without connecting any external oil pump or lubrication station;

3. Former straight wind tunnel in the traditional mill is replaced by curved one;

4. Sheet of the shovel is easy for change, and cyclone collector in isolated type;

5. Porthole adopts smooth wind spiral, which also gives the mill a very beautiful appearance.

MTW Grinding Mill Applications :

MTW European Trapezium Grinding Mill is mainly applied to the powder processing of mineral products in industries of metallurgy, construction, chemistry, and mining etc. The grinding machine can produce powder from non-flammable and non-explosive mineral materials， such as barite, limestone, quartz, calcite, granite, porcelain clay, basalt, gypsum etc.

Working Principle
Specifications
Inquiry

The bevel gear transmits in a whole and drives the main shaft, who is connected with the roller hanger in the top. There are grinding rollers installed in the hangers and forming a swing support. The rollers rotate not just around the main shaft, but also around the grinding ring, besides, rollers can rotate to itself as well because of friction. Shovels are installed at the bottom end of hanger; when shovels rotate together with rollers, materials will be fed into space between rollers and ring to form a material layer, which will be grinded due to centrifugal force. The classifier drives the blades in the rotary table through the speed motor to classify the powder.
