Aggregates are the raw materials for construction buiding, and they are inert granular materials such as sand, small-size gravel, or crushed stones. They along portland cement and water, are an essential ingredient in concrete making.

10 mm graded crushed rock or aggregate, for use in concrete. Called "blue metal" in Australia.

Construction aggregate, or simply “aggregate“, is a broad category of coarse particulate material used in construction, including sand, gravel, crushed stone, slag, recycled concrete and geosynthetic aggregates.Aggregates are a component of composite materials such as concrete and asphalt concrete; the aggregate serves as reinforcement to add strength to the overall composite material. Due to the relatively high hydraulic conductivity value as compared to most soils, aggregates are widely used in drainage applications such as foundation and French drains, septic drain fields, retaining wall drains, and road side edge drains. Aggregates are also used as base material under foundations, roads, and railroads. To put it another way, aggregates are used as a stable foundation or road/rail base with predictable, uniform properties (e.g. to help prevent differential settling under the road or building), or as a low-cost extender that binds with more expensive cement or asphalt to form concrete.

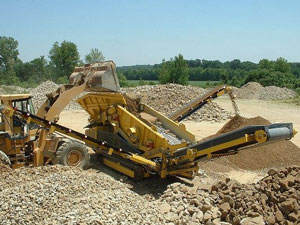

Aggregate Crusher – Aggregate Equipment

Aggregate crusher major means jaw crusher, impact crusher, in some aggregate crushing plant, cone crusher and VSI crusher is needed.

Jaw crusher is the major crushing equipment in aggregate plant. Jaw crusher play roles as primary crushing to break large raw rocks, stones into small particles.

Impact Crusher

Impact crusher is an important crushing equipment in aggregate plant to produce high quality aggregate. The major feature of impact crusher is that the final produce of impact crusher is in cubical shape, which is suitable to be used as high quality aggregate.

VSI (vertical shaft impact) crusher is a high performance crushing equipment for aggregate production. VSI crusher has two working methods: “rock on rock” and “rock on iron”. Sand aggregate yield of “rock-on-iron” type is higher by 10-20% than that of “rock-on-rock” type. VSI crusher is widely used to crusher hard rocks like basalt, granite, hard limestone etc.

The capacity of aggregate crushing and screening plant is from 30 to 1000TPH. The layout of aggregate crushing and screening plant incudes PE jaw crusher, PFW impact crusher, HP cone crusher, VSI crusher.

The technology of three crushing stages, with jaw, cone, impactor, VSI crushers, makes it possible to produce cubical-shaped aggregate (Aggregate and gravel from compact rocks for civil construction specifications) in fractions of 40-70 mm, 20-40 mm, 5-20 mm (round holes) and manufactured sand in a 0-5 mm fraction. The flexible technology facilitates adaptation of production to market requirements and an output of narrow fractions and aggregate for railway ballast.

Aggregate Crushing & Screening Plant :

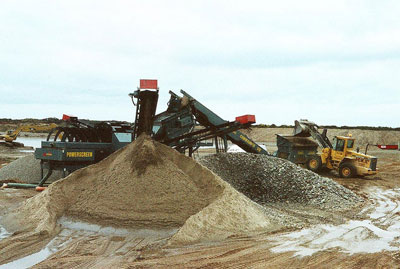

Aggregate crushing & screening plant

Natural gravel or sand are usually dredged or dug from a pit, river, lake, seabed or mountain. Crushed aggregate is produced by crushing quarry rocks, boulders, cobbles, or large-size gravels. Recycled concrete is a viable source of aggregate and has been satisfactorily used in soil-cement, granular subbases, and in new concrete. Aggregate processing consists of crushing, screening, and washing the aggregate to obtain proper cleanliness and size. If necessary, a benefaction process such as jigging or heavy media separation can be used to upgrade the quality.

SBM aggregate crusher plant consists of vibrating feeder, heavy duty jaw crusher, small jaw crusher, impact crusher, VSI crusher, vibrating screen, vibrating grizzly feeder, conveyor belt and electric controlling system. The crushing production capacity is from 30 TPH to 1000 TPH. The final grain size of the products will be in fractions of 40-70 mm, 20-40 mm, 5-20 mm (round holes) and manufactured sand in a 0-5 mm fraction. According to the customers’ needs, we also can equip cone crusher, dust catcher on the aggregate crushing plant.

The aggregate crushing and screening plant manufactured by SBM is suitable to produce limestone aggregate, marble aggregate, quartz sand aggregate, sandstone aggregate, basalt aggregate, granite aggregate, river stone aggregate and so on. The aggregate crushing plant can produce all kinds of concrete aggregates for construction, building, road, highway construction industry.

Process Flow Chart Of Aggregate Plant

There are several types of crushers to be choosed as stone aggregate crusher machine used in stone aggregate crushing plant.

The Big materials are fed to the jaw crusher evenly and gradually by vibrating feeder through a hopper for the primary crushing. After first crushing, the material will transferred to impact crusher or cone crusher by belt conveyor for secondary crushing; the crushed materials will then transferred to vibrating screen for separating. After being separated, the parts that can meet standard will be taken away as final products, while the other parts will be returned to cone crusher or impact crusher for re-crushing , thus forming a closed circuit. Size of final products can be combined and graded according to customer’s specific requirement. We can also equip dust catcher system to protect environment.

The start of production of cubical aggregate will influence the economic development of the region positively and will improve housing and road construction.
